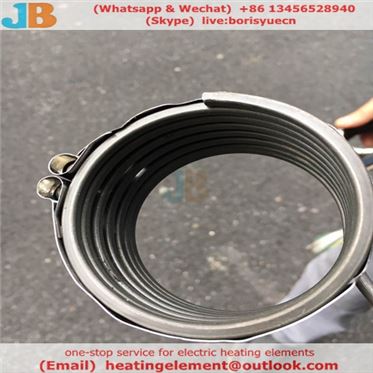

Kub Khiav Nozzle Chev Rhaub
Kev piav qhia
Qhov ntev ntawm lub tshuab hluav taws xob kub kub lossis kub khiav nozzle coil rhaub nyob rau hauv 20-3000mm yog tsuas yog siv rau kub khiav pwm
Superb Rhaub Kub Kub Khiav Chev Cua Sov yog tsim nyob rau hauv ib puag ncig, square thiab duab plaub seem kom ntseeg tau tias qhov kub siab tshaj plaws thaum tswj kev ua haujlwm zoo. Cov ntawv thov tseem ceeb tshaj plaws yog cov nozzles rau cov tshuab kub khiav, kub yaj nozzles, manifolds, thiab lwm yam. Cov cua sov no tuaj yeem tsim nrog J lossis K hom thermocouples.
Specifications
Sheath Material | ss304 / ss321 / ss316 / tooj liab |
Cov khoom siv rwb thaiv tsev | Siab ntshiab MgO |
Resistance Hlau | Cr20Ni80 |
Qhov hluav taws xob | 12V ~ 415V |
Hwj chim | 70W ~ 3000w |
Thermocouple | Thermcouple J los yog K |
MAX sheath kub | 700℃ |
Hla ntu xaiv tau | 3 * 3, 3.5 * 3.5, 4 * 4, 2.2 * 4.2mm lwm yam hla ntu tuaj yeem muab tau los ntawm kev thov |
Kev kho saum npoo | Silver sandblasted los yog dub |
Lub neej ua haujlwm | 10000 teev nyob rau hauv 400 ℃ minus thiab 2000 teev ntawm 700 ℃ |
Qhov sib txawv ntawm cov yam ntxwv ntawm lub caij nplooj ntoos hlav kub caij nplooj ntoos hlav cua sov thiab cov cua kub zoo tib yam:
1. Txawm tias cua sov thiab lub neej ntev
2. Zoo poob siab tsis kam, kaw hom, zoo corrosion kuj
3. Zoo siab tsis kam
Peb Cov Duab Ntau Lawm
 |  |  |
 |  |  |
 |  |  |
 |  |  |
Thaum koj xaj, pls muab cov ntaub ntawv no
1. D: Inner Diameter (mm)
2. C: Qhov siab (mm)
3. Ntu cheeb tsam: E * F (mm)
4. A: Cov Hlau Hlau
5. Q: Kom muaj nuj nqis
Nyob zoo phooj ywg, yog tias koj muaj lus nug, thov hu rau peb txhua lub sijhawm, thiab peb xav kom koj ua lag luam zoo. Ua tsaug.
Cim npe nrov: Kub khiav nozzle coil rhaub, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale
